• Embedded single board computer for industrial control applications
• Wide variety of standard interfaces, including networking, display, & expansion
• Discrete inputs and outputs to allow interface to physical devices
• Utilizes the Modular Altronic Software Application (MASA) framework
• Supported by Altronic-Linux® image (Debian®-based)
• Flexible hardware options to support a variety of computational tasks

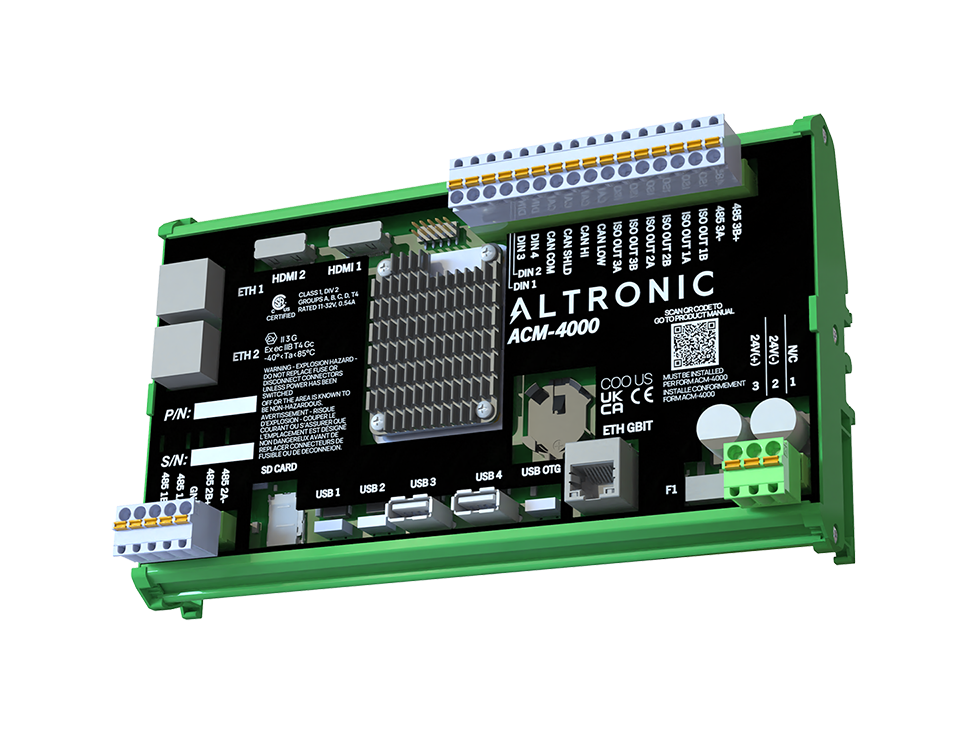

The innovative ACM-4000 Altronic Compute Module is engineered and built to execute a range of packaged applications and communication-specific functions in an industrial control environment. Designed for flexible and reliable service in difficult, mission-critical operating environments, this DIN-rail-mounted 24 Vdc-powered embedded device includes a wide variety of supported interfaces, including Ethernet (Gigabit and 10/100), 4K HDMI, CANbus, RS-485, USB (A/C), microSD, and PCI-E. ACM-4000 can be used in a variety of computationally intensive roles in support of other advanced products like the DE-4000 and AFR-500, as well as in independent service in supporting I/O processing functions when integrated with third-party devices. Four (4) 24Vdc inputs, and four (4) solid-state relay-based outputs are also available for additional control functionality. The available ACM-4000 application packages – the Modular Altronic Software Application (MASA) framework – are detailed in the MASA WIKI on the Altronic website at www.altronic-llc.com. The ACM-4000 Altronic Compute Module is certified* for use in Class I, Division 2, Group C and D hazardous areas. * Final certification of system pending with NRTL. Expected completion in Q2 2023.
